Category: Artificial grass installation

Artificial grass power brush

The machine is equipped with a gasoline engine, which drives the sand brush to rotate through the sprocket. Workers can flexibly and easily operate the all-electric combing grass. The wheels have no wheel marks and are fluffy and good-looking after combing the grass in the front. The rotating screw is used to lift and adjust the sand brushing depth to meet the requirements of the lawn carding process.Artificial grass power brush machine is equipped with a gasoline engine, which drives the sand brush to rotate through the sprocket. Workers can flexibly and easily operate the all-electric combing grass. The wheels have no wheel marks and are fluffy and good-looking after combing the grass in the front. The rotating screw is used to lift and adjust the sand brushing depth to meet the requirements of the lawn carding process.

Artificial grass power brush, gasoline brushing machine, electric grass brushing machine, ride-on lawn brushing machine, artificial grass brushing machine, grass brushing machine, sports field lawn grooming machine, 5.5 horsepower artificial turf grass brushing machine

The artificial grass power brush uses a machine that mechanically rotates to drive the brush to work. It is mainly used for construction in artificial turf environments such as school playgrounds and football fields, which greatly saves manpower, material, and financial resources.

Structure and function

1. The main drive adopts an aluminum alloy worm reducer for speed change, which is light in weight and compact in structure, and has a good transmission effect.

2. The length of the cylindrical brush is composed of multiple pieces, which is easy to disassemble and replace.

3. The front wheel support is equipped with a lifting screw, which is convenient to adjust the ground clearance of the brush.

Fully automatic artificial turf sand filling and particle filling equipment, filling and carding are carried out at the same time, so as to minimize the wear of grass silk during construction.

B1505 Artificial turf automatic sand filling truck

The artificial turf automatic sand filling truck is suitable for the most advanced artificial turf construction technology. Even when the artificial turf grass is particularly long and dense, it can spread quartz sand or other particles according to the set filling amount. The flexibly suspended brush head device is composed of several independent brush heads, which can straighten and comb the grass filaments, fill them with quartz sand or rubber particles while combing, and stabilize the grass filaments through the subsequent vibrating brush. In the same process, the filler particles are evenly combed to the roots of the grass to give full play to the effect of quartz sand to fix the grass.

When the equipment is transported in, the quartz sand or rubber particles can be spread at a speed according to the set spreading amount. Through the slide valve, the filling material can be spread according to different set amounts, and the spread amount can be set from 2.5 to 40 kg per square meter at one time. The vibration rate of the brush head and the forward speed of the device are also infinitely adjustable.

The traveling speed is 1 to 10 meters per minute and the working width is 1.5 meters, so this machine is very convenient to use. The working efficiency of the equipment is 1.5 to 15 square meters per minute. The unit is powered by a three-cylinder Kubota diesel engine with a power of 18.4 kW. All functions of this equipment can be controlled hydraulically. The cooling cycle of the hydraulic oil is carried out by an additional cooler. The vibration direction and speed of the brush head and the traveling direction and working speed of the equipment are all preset by the central control panel. Therefore, the B1505 only needs to be controlled by the remote control to complete the operation. It also enables the operator to monitor all other conditions outside the filling area. The weight of this equipment is carried by 8 pneumatic tires, and the ground pressure is small. Therefore, when filling the synthetic pavement, the pavement will not be damaged. Four pairs of tires can turn extremely easily, with a maximum turning angle of 120 degrees Cels

In recent years, the artificial turf industry has developed rapidly, and it has been widely used and recognized for its forever green appearance, good performance, long service life, less environmental impact, and lower maintenance costs. Gradually replace natural lawns in various comprehensive sports venues and leisure venues. Artificial turf adhesive glue is very important in the entire artificial turf installation process, and its quality plays a very critical role in the overall use effect of artificial turf.

Artificial turf paved with inferior glue will be prone to cracking, degumming and curling, and warping after a long period of wind, sun, and rain. service life. Therefore, when choosing artificial turf glue, you must choose and use the glue from the four standards of water resistance, weather resistance, adhesion, and environmental protection.

Water resistance

Since most artificial turf is used for outdoor venues, in the face of rain and snow, the use of glue with poor waterproof performance will lead to the degumming of artificial turf and corrosion of the bottom of the lawn. Therefore, when purchasing turf glue, the waterproof performance will directly affect artificial turf. The stability of the lawn bottom.

Weather resistance

The climatic conditions in different regions of the world are different, and the temperature difference is also quite different. Good quality glue has stable high and low-temperature performance, and it is very convenient to use in high-temperature or low-temperature conditions. On the other hand, glue with poor quality is easy to stick at high temperatures and easy to solidify at low temperatures, which will lead to the gluing effect when pasting.

High adhesion

Usually, the service life of artificial turf is about 6-10 years. As an important tool for pasting artificial turf joints, the validity period of glue must exceed the service life of artificial turf. Otherwise, the adhesion is poor, and the joints of the turf are easily cracked and degummed, thus greatly reducing the service life of the artificial turf field.

Environmental performance

When using, you should choose glue that does not contain heavy metals, odors, formaldehyde, and other harmful chemicals. The selection of glue with substandard environmental performance will lead to long-term exposure to this harmful environment during exercise, thus threatening the safety of sports.

Artificial grass adhesive is divided into one-component and two-component glue. For more details, please click Artificial grass glue.

Artificial turf fields have appeared more and more and are used in people’s daily sports life. A complete artificial turf sports system is mainly composed of three parts: base layer, buffer layer and turf layer. The ground foundation is not only one of the most important links in the laying of the entire artificial turf, but also the carrier of the entire sports ground. The quality of the ground directly affects the performance and service life of the entire artificial turf sports ground. Therefore, we must pay attention to artificial turf. Infrastructure for lawn fields. The following briefly introduces some basic types that are currently used in artificial turf sports venues.

Cement concrete foundation

Flatness: The qualified rate of flatness is above 95%, and the error of 5-meter ruler is 3mm.

Slope: 3‰-4‰ of the central site, turtle-back drainage design. The curve should be 8‰, the straight road should be 5‰, and the semi-circular area should be 5‰. The surface should be flat, smooth and good drainage.

Strength and stability: The surface is uniform and firm without cracks, no rotten edges, and the seams are straight and smooth. Cut into pieces with a size of 6m × 6m. The cushion layer is compacted, and the density is greater than 95%. After being pressed by a heavy-duty roller compactor, it is ensured that the surface layer is free from loose floating soil and obvious wheel marks.

Waterproof layer: New PVC thickened water-proof film is used, the overlap should be 20cm, and the margin size should be greater than 15cm.

Warranty Period: The basic warranty period is 21 days.

Positioning: For accurate construction and line drawing needs, use firm and distinct markers to mark the lines of the site.

Asphalt foundation

Flatness: The qualified rate of flatness is above 95%, and the error of 3-meter ruler is 3mm.

Slope: horizontal <1%, vertical <1‰, high jumping area <4‰, the surface should be flat and smooth to ensure drainage.

Strength and stability: Asphalt materials should preferably use materials with no or little wax content. The base surface must be fully compacted to ensure smoothness without cracks, accumulation of rotten edges, and smooth and smooth joints.

Warranty Period: Basic Warranty Period 28 days.

Notoginseng lime soil foundation

Material ratio: The soil material should be cohesive fine-grained soil with a particle size of not more than 15mm, the sulfate content should be less than 0.8%, the organic matter content should be less than 10%, and the lime should be slaked lime powder with a grade of not less than III. After selecting qualified soil materials and lime, do a 3:7 lime soil compaction test, and the inspection quantity is inspected once every 5000m³ (heavy compaction), so as to control the construction quality.

Water content: The control of water content is a key link. Generally, the water content should be controlled at 20% to 23%, and the maximum should not exceed 24%. Before construction, parameters such as the control range of soil moisture content, the thickness of ash-laying soil, and the ramming and rolling variables should be reasonably determined according to the project characteristics, design compaction coefficient, soil types, and construction conditions.

Compaction standard: compaction coefficient K≥0.95.

The above foundations are suitable for the installation of artificial grass. Choosing the foundation for the appropriate project will help you complete the installation of the artificial grass sports field system.

When installing artificial grass, two pieces of artificial grass need to be spliced ​​together, and glue will be used.

About artificial grass glue, this article has a few tips:

Two-component artificial grass glue

1. It is especially suitable to use two-component artificial grass glue on the sports field, because it cures quickly, which helps to improve the installation efficiency of artificial grass fields.

2. But the shelf life of the two-component is relatively short, the main agent is 12 months, the curing agent is 6 months,

Therefore, the two-component glue has a shelf life of half a year, which means that it should be used within 5 months after receiving the artificial grass glue.

3 A bucket of artificial grass glue can be used for 160 meters of long seam tape, and the width is 30cm.

4. This artificial grass two-component glue is PU glue, which must be used together with the PET connecting tape, used under the correct instructions and guidance, the life of the glue is as long as that of artificial grass.

5. The two-component glue will cure within an hour after opening the cover. Please use it as soon as possible after stirring after opening it.

One-component artificial grass glue is suitable for garden, and leisure artificial grass installation for the following reasons:

1. A bucket of 1 gallon of one-component glue (4.2KG) can be used for 70 meters long seam tape, and the width is 30cm. Suitable for small areas of recreational grass.

2. One-component glue is not easy to cure and can be used after sealing.

3. The shelf life is one year, and it needs to be sold or used within one year.

One-component glue can be coated with black PP connecting tape, and PU artificial grass glue can only stick to PET connecting tape. There is no difference in performance. Some customers prefer two-component glue, while others prefer one-component glue. Two-component glue is generally used in sports fields, with fast curing and high efficiency. Calculated from the overall cost, two-component glue The cost of coating is higher than that of one-component coating.

In addition, there is also a 310ml piece of glue that is glued with a glue gun.

Artificial football turf has become the first choice for most stadiums and training grounds. Compared to natural grass, artificial turf provides many benefits.

Benefits of Artificial Turf Fields

• Low maintenance(e.g. How to maintain artificial turf ?)
• All-weather usability
• High durability
• Cost-effective over time
• Environmentally friendly (no need for pesticides or watering)

---

Steps to Install an Artificial Football Turf Field

1. Planning and Design

Before installing, consider the following:

• Field dimensions (5-a-side, 7-a-side, 11-a-side, etc.)
• Field layout and orientation
• Drainage systems
• Type of infill (sand, rubber, or both)
• Fencing, lighting, and other infrastructure

2. Base Preparation

• Remove existing vegetation and topsoil
• Install drainage layers (gravel and geotextile)
• Compact the base to ensure stability
• Laser-grade the surface for a smooth and level foundation

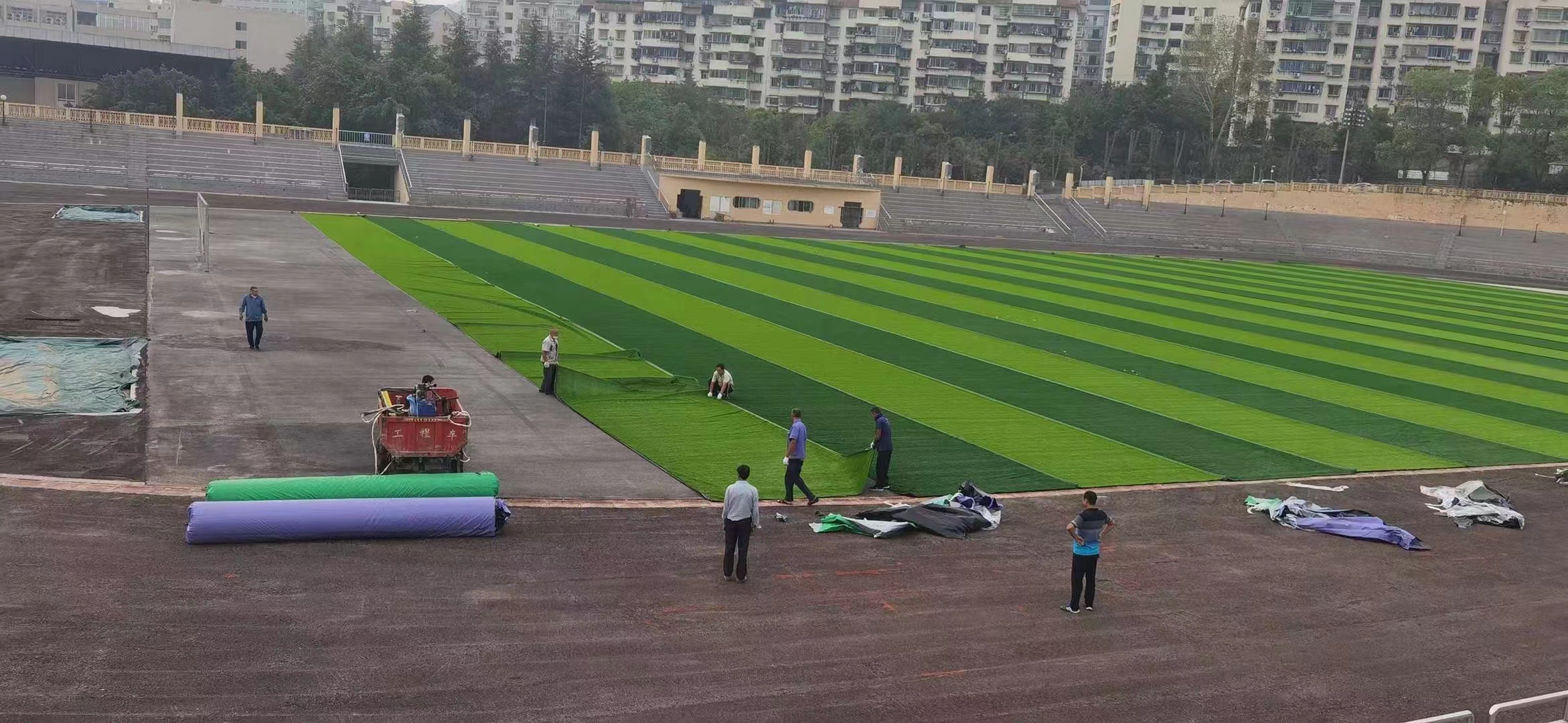

3. Laying the Artificial Turf

• Roll out the turf according to field dimensions
• Make sure all pieces face the same direction to maintain consistent appearance
• Trim the edges as needed

4. Joining the Turf Rolls

• Apply seam tape and adhesive to connect turf rolls
• Ensure seams are tight and invisible
• Let the adhesive cure before walking on the turf

5. Infill Application

• Spread silica sand as the first infill layer
• Add rubber granules on top of the sand for cushioning
• Use a power brush to evenly distribute the infill materials
• Repeat brushing to help fibers stand upright

6. Line Markings

• Use white turf lines or paint for markings (center circle, penalty box, etc.)
• Ensure all dimensions comply with FIFA or local standards

7. Final Inspection and Maintenance Plan

• Inspect for wrinkles, seams, or inconsistent infill
• Create a maintenance schedule: brushing, debris removal, and infill topping
• Ensure proper drainage functionality after heavy rainfall

---

Common Questions (FAQ)

Q: How long does it take to install a football turf field?
A: Typically, 2–4 weeks depending on field size and weather conditions.

Q: What is the life expectancy of artificial turf?
A: 8 to 10 years with proper maintenance.

Q: Is artificial turf safe for players?
A: Yes. Modern turf systems offer good shock absorption and reduce injury risks.

Q: Can artificial turf be used in all weather conditions?
A: Absolutely. It performs well in rain, snow, and heat.

Q: how to choose the right synthetic turf for sports fields?
A: User Guide

---

Conclusion

Installing an artificial football turf field is a major investment that offers excellent returns in usability, maintenance savings, and player satisfaction. Follow each step carefully, or hire a professional team to ensure long-term performance and durability.

---
